The NexiusZoom stereo microscopes enable examining your specimen with high-performance precision and generate three-dimensional images allowing observation for your highest demanding microscopy applications. These top level zoom microscopes are perfect for analyzing all kinds of material surfaces or to observe and prepare biological samples

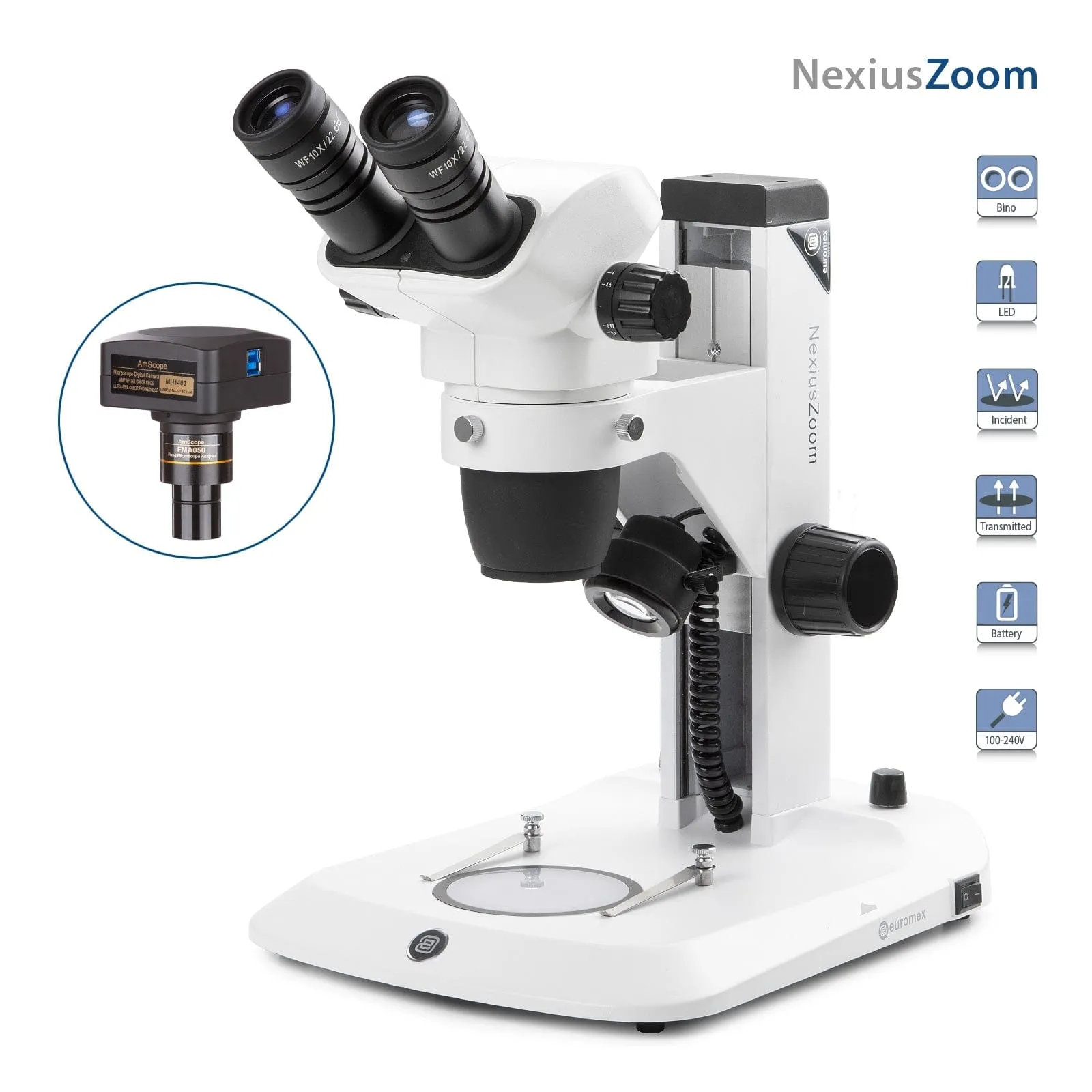

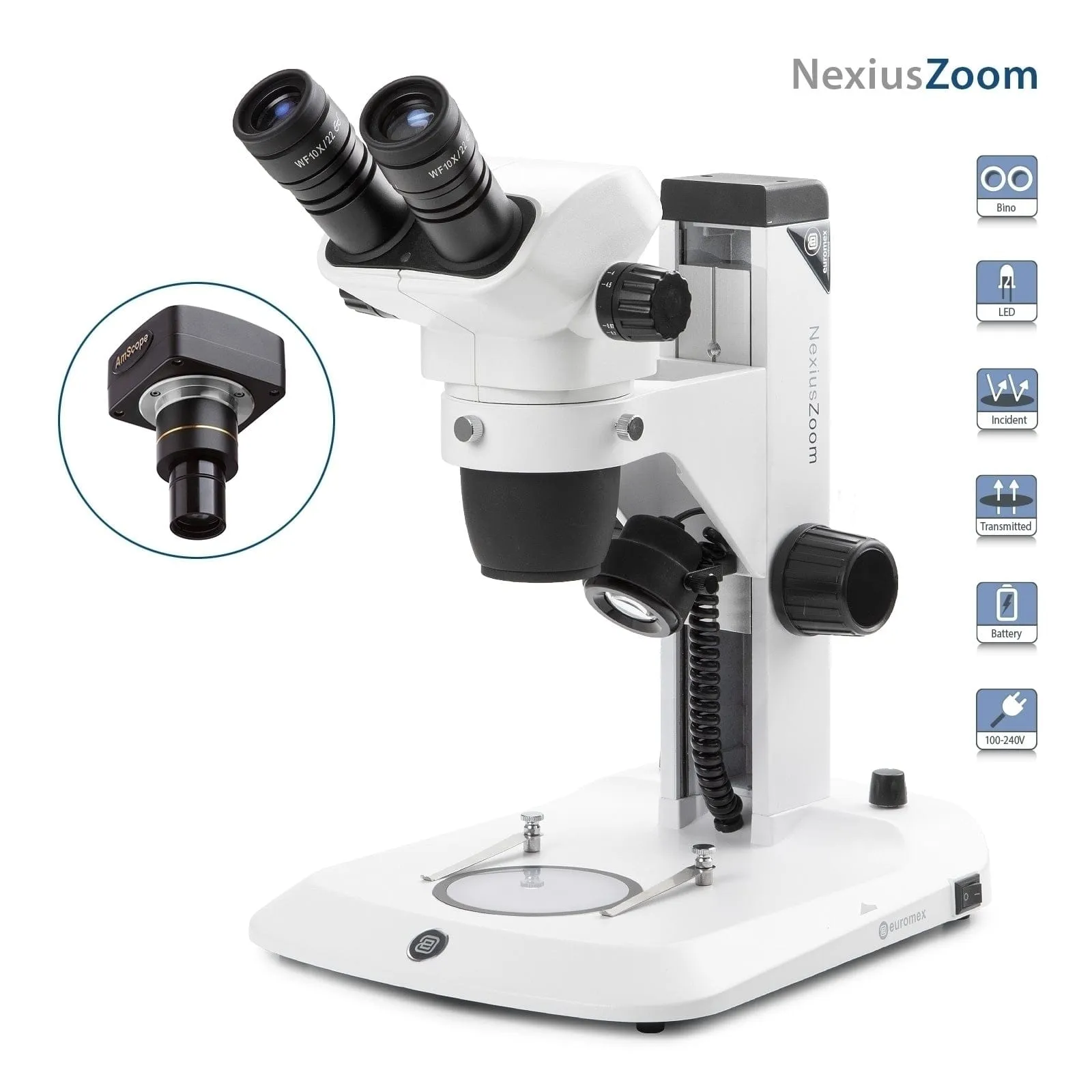

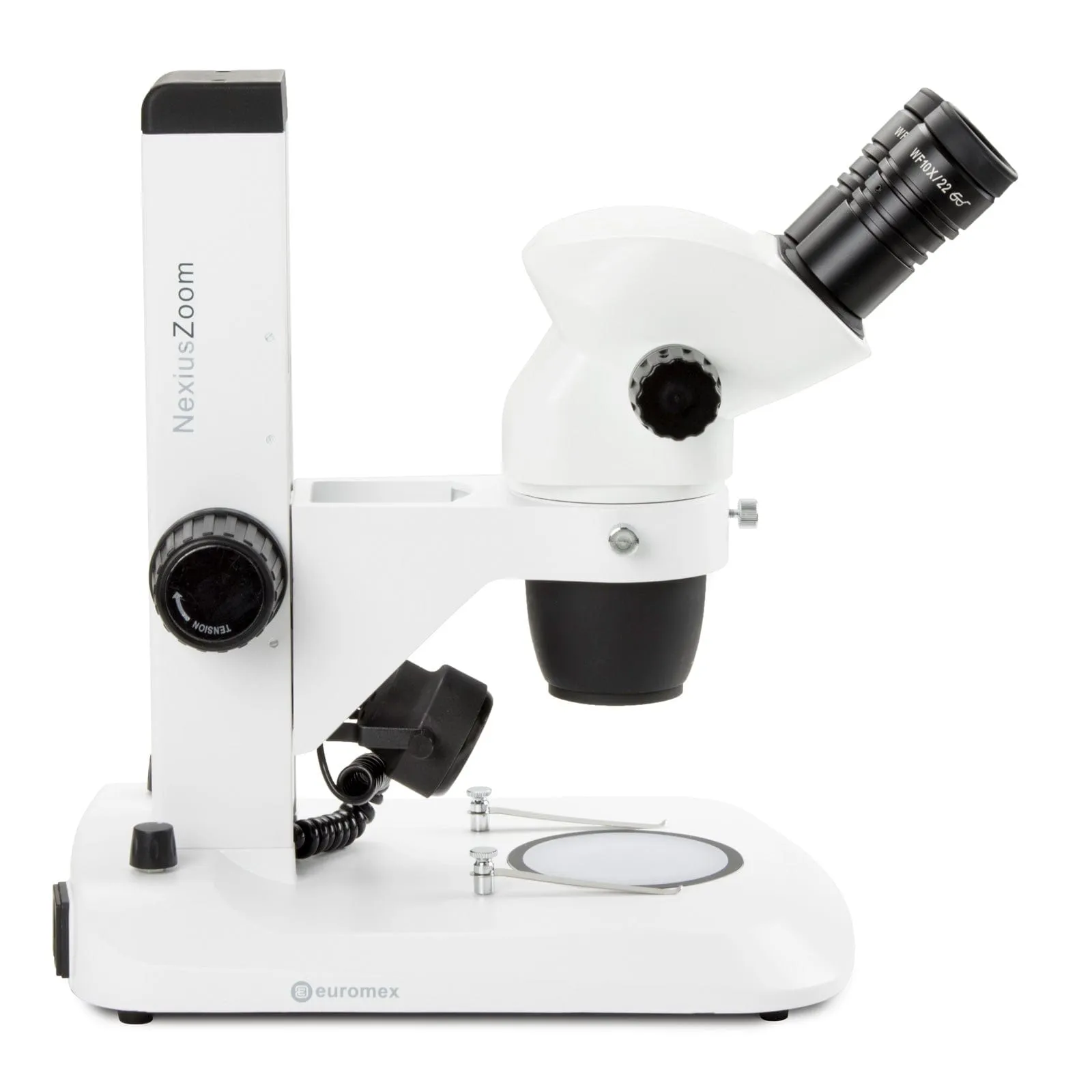

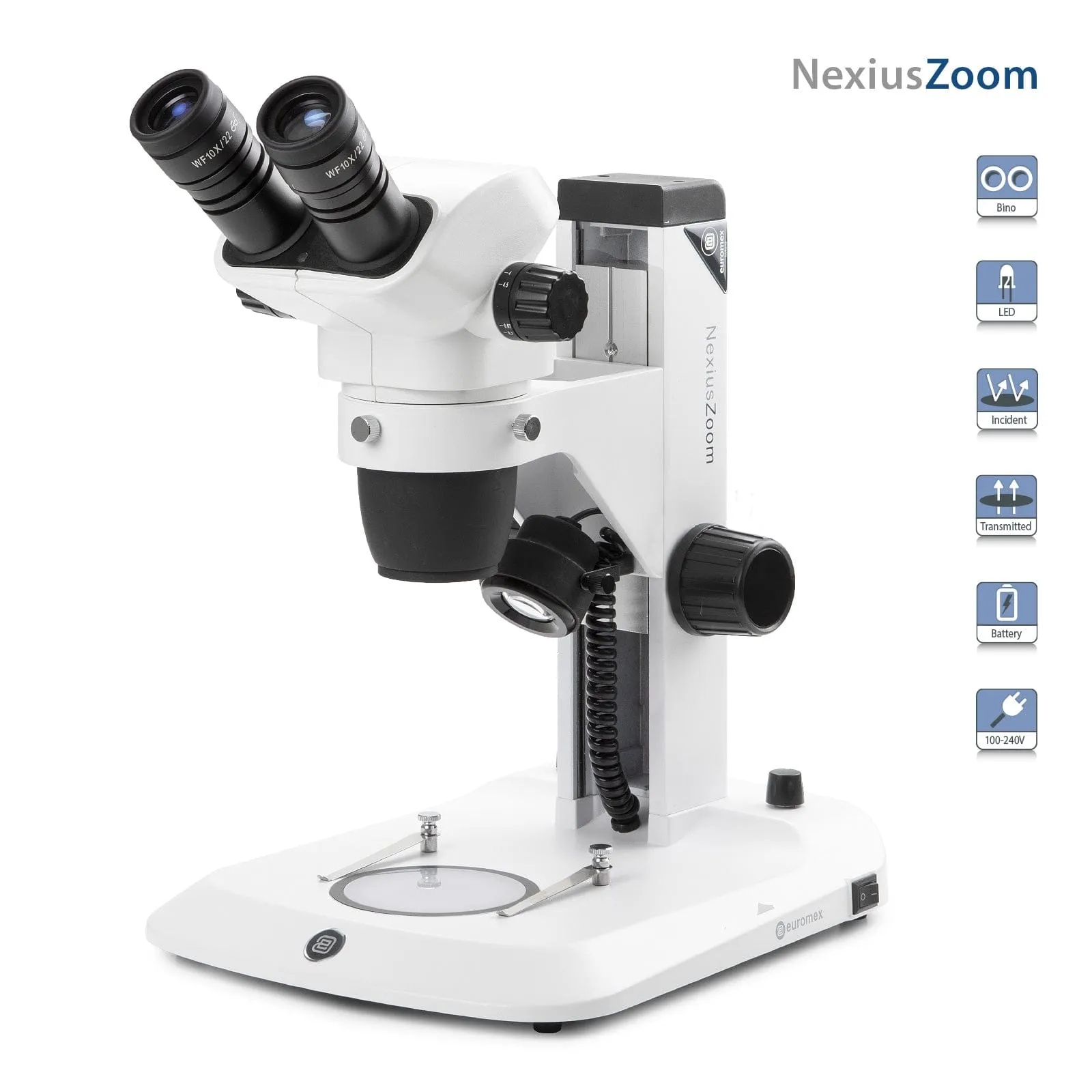

The NexiusZoom NZ1902-S microscope is supplied with a rack & pinion stand, with LED illumination. Ideal for a wide variety of educational and laboratories applications.
Features:
Binocular head with HWF 10x/22mm
Zoom ratio 1: 6.7, 6.7x to 45x
Ergonomic rack & pinion stand
Double 3 W LED illumination
Large working distance
Specifications:
EYEPIECES
Supplied with a pair of HWF 10x/22mm eyepieces
HEAD
Binocular head with 45 degree inclined tubes. Both eyepieces with ± 5 diopter adjustments Interpupillary distance adjustable between 54mm and 75mm.
OBJECTIVES
Supplied with a 1:6.7 zoom objective with 0.67x to 4.5x magnifications, a field of view from 33 mm to 4.9mm. Working distance 110mm
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAND
Ergonomically designed rack & pinion stand with 3W incident and 3W transmitted LED illuminations
All rack & pinion stands are supplied with two object clamps. Alloy metal cast, hardened coating
STAGE
180 x 155mm X-Y mechanical stage with 76 x 55mm translation stage and transparent glass plate for NexiusZoom, fixed on stage of microscope.
ILLUMINATION
The 3 W transmitted and incident LED illuminators with internal power supply 100-240 V operation. Both illuminators can be used simultaneously and the light intensities can be adjusted separately
PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual. All packed in a polystyrene box
